Antifreeze Protector Alphi-11

Fernox Antifreeze Protector Alphi-11 is a combined antifreeze and corrosion inhibitor based on mono-propylene glycol—a safer, food-grade glycol formulated to protect heating, chilled water, geothermal, and data center cooling systems, including those with aluminum heat exchangers, from frost, corrosion, and limescale.
Unlike many antifreezes, Fernox Antifreeze Protector Alphi-11 does not contain phosphates, nitrates, or 2-ethylhexanoic acid. These additives are often why many glycols carry hazard warnings—because they can be hazardous to health and harmful to the environment.
Fernox Antifreeze Protector Alphi-11 offers a non-toxic, NSF HT1-certified formulation, safe for incidental food contact and ready to use with municipal/ city water.
It’s pH-stable, environmentally responsible, and safe for the installer and the system.

  • No need for a winter system drain down
  • NSF HT1 registered product – certified safe for ‘incidental food contact’ and ideal for use with single walled heat exchangers
  • Compatible with all metals and materials commonly found in a hydronic heating system
  • Environmentally friendly formulation: Nitrite, Nitrate, Phosphate and EDTA free
  • Available as full strength and premix
  • pH level in concentration: 7.0-7.7
    pH level in solution: 7.0-7.8
Available Versions
CodeFit Type and SizeProduct Data SheetSafety Data Sheet (PDF)

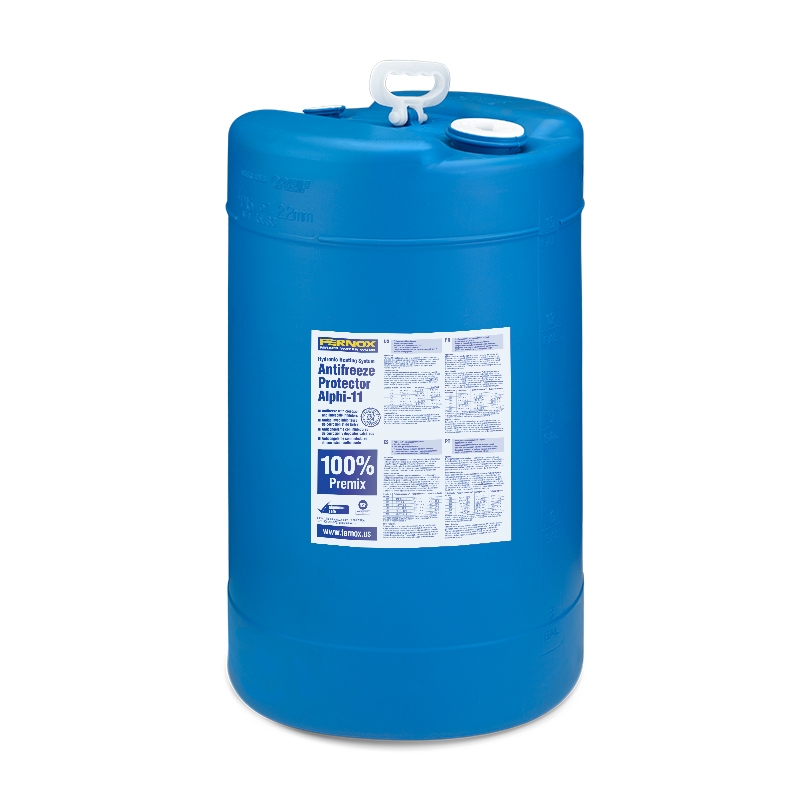

174819-0015
Concentration: 30, Gallons: 15
244338-0015
Concentration: 35, Gallons: 15
174821-0015
Concentration: 40, Gallons: 15
175578-0015
Concentration: 50, Gallons: 15
155738-0015
Concentration: 100, Gallons: 15
155738-0055
Concentration: 100, Gallons: 55
155738-0005
Concentration: 100, Gallons: 5

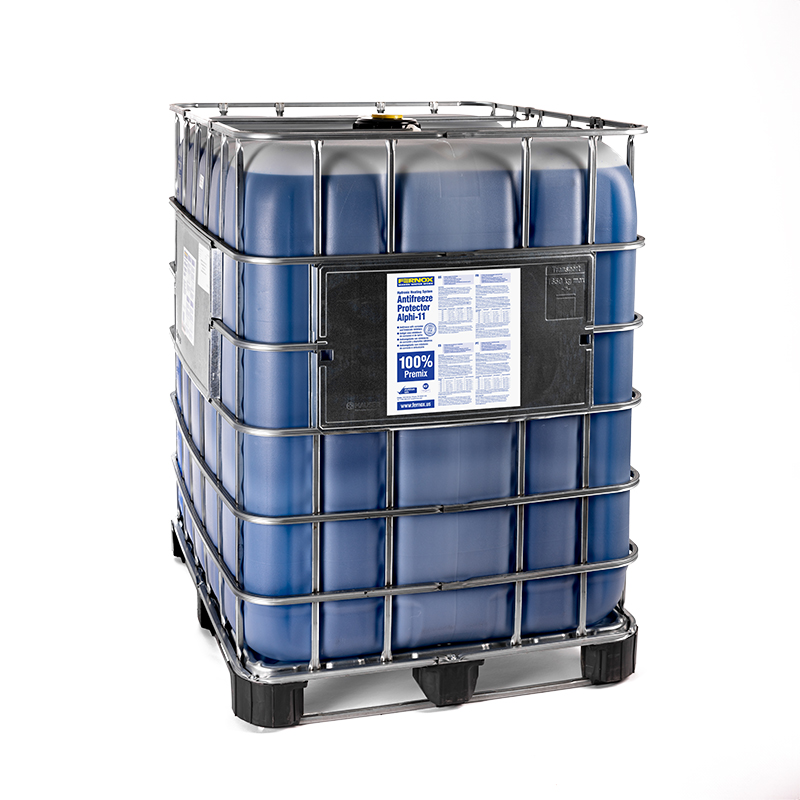

244338-0330
Concentration: 35, Gallons: 330
244338-0055
Concentration: 35, Gallons: 55
244338-0005
Concentration: 35, Gallons: 5
244337-0330
Concentration: 45, Gallons: 330
244337-0055
Concentration: 45, Gallons: 55
244337-0005
Concentration: 45, Gallons: 5
175578-0330
Concentration: 50, Gallons: 330
175578-0055
Concentration: 50, Gallons: 55
175578-0005
Concentration: 50, Gallons: 5
174821-0330
Concentration: 40, Gallons: 330
174821-0055
Concentration: 40, Gallons: 55
174819-0330
Concentration: 30, Gallons: 330
174821-0005
Concentration: 40, Gallons: 5
174819-0055
Concentration: 30, Gallons: 55
174819-0005
Concentration: 30, Gallons: 5
155738-0330
Concentration: 100, Gallons: 330
Application

Alphi-11 Antifreeze Protector can be introduced via the feed and expansion tank, or injected directly into the system via a suitable point (e.g. dosing pot). Introduce into the system after draining off a quantity of water at least equal to the amount of Alphi-11 to be added. Engage the circulating pump and have the system online for a few hours in order to achieve an even distribution.

Volumetrics
CodeConcentration & GallonsSingle Unit BarcodeSingle Unit Dimensions(Height x Width x Depth)Outer Carton Barcode (ITF)Outer Carton Dimensions(Height x Width x Depth)
174819-0015
Concentration: 30, Gallons: 15
5014551003743
26.29 x 14.41 x 14.41 "
x x "
244338-0015
Concentration: 35, Gallons: 15
5014551003750
26.29 x 14.41 x 14.41 "
x x "
174821-0015
Concentration: 40, Gallons: 15
5014551003767
26.29 x 14.41 x 14.41 "
x x "
175578-0015
Concentration: 50, Gallons: 15
5014551003774
26.29 x 14.41 x 14.41 "
x x "
155738-0015
Concentration: 100, Gallons: 15
5014551003736
26.29 x 14.41 x 14.41 "
x x "
155738-0055
Concentration: 100, Gallons: 55
5014551000599
35.00 x 22.01 x 22.01 "
35.00 x 87.99 x 87.99 "
155738-0005
Concentration: 100, Gallons: 5
5014551000568
15.00 x 11.02 x 10.51 "
30.00 x 175.98 x 115.98 "
244338-0330
Concentration: 35, Gallons: 330
5014551003804
52.99 x 47.99 x 40.00 "
52.99 x 47.99 x 40.00 "
244338-0055
Concentration: 35, Gallons: 55
5014551002289
35.00 x 22.01 x 22.01 "
35.00 x 87.99 x 87.99 "
244338-0005
Concentration: 35, Gallons: 5
5014551002296
15.00 x 11.02 x 10.51 "
30.00 x 175.98 x 115.98 "
