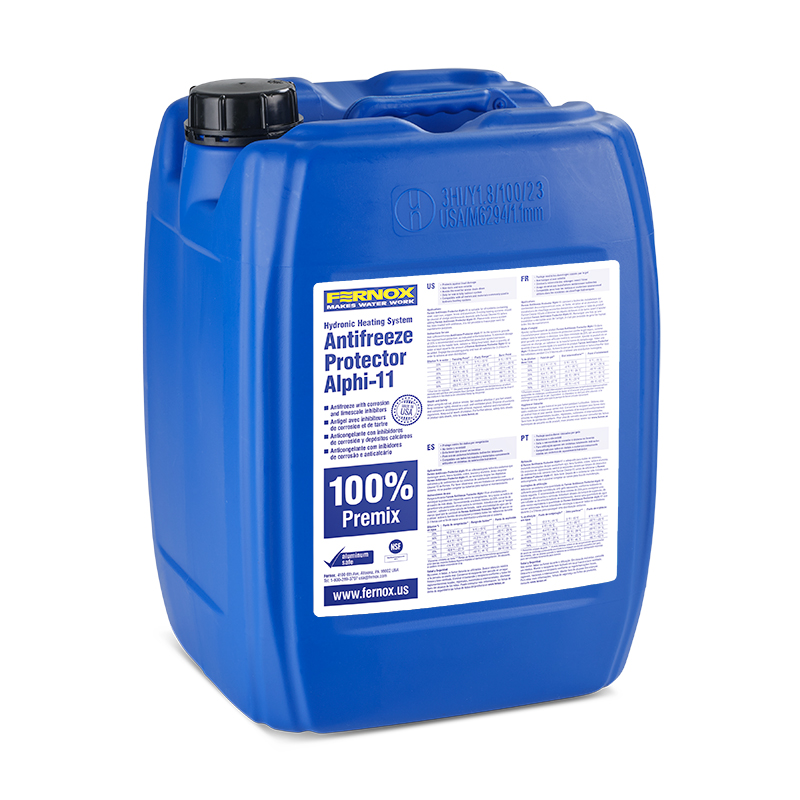

Fernox Antifreeze Protector Alphi-11 is a combined antifreeze and corrosion inhibitor based on mono-propylene glycol—a safer, food-grade glycol formulated to protect heating, chilled water, geothermal, and data center cooling systems, including those with aluminum heat exchangers, from frost, corrosion, and limescale.
Unlike many antifreezes, Fernox Antifreeze Protector Alphi-11 does not contain phosphates, nitrates, or 2-ethylhexanoic acid. These additives are often why many glycols carry hazard warnings—because they can be hazardous to health and harmful to the environment.
Fernox Antifreeze Protector Alphi-11 offers a non-toxic, NSF HT1-certified formulation, safe for incidental food contact and ready to use with municipal/ city water.
It’s pH-stable, environmentally responsible, and safe for the installer and the system.

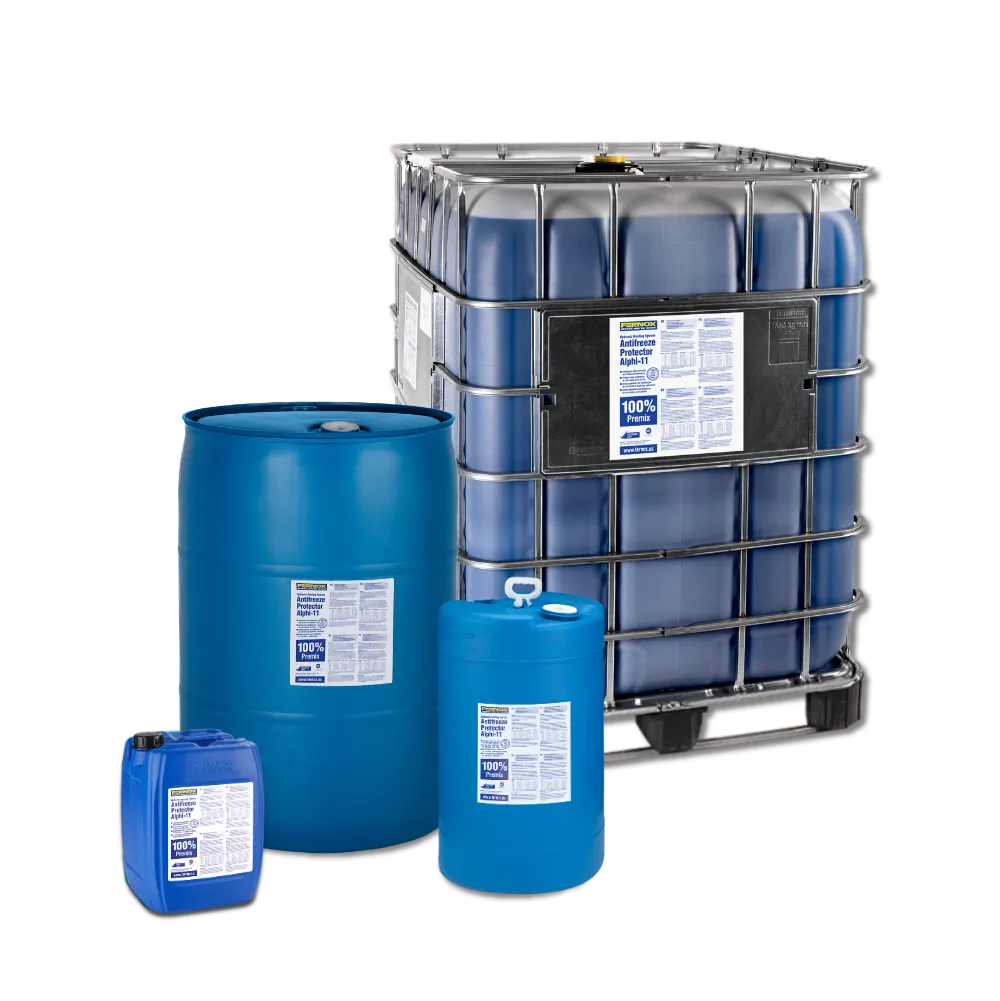

| Code | Fit Type and Size | Product Data Sheet | Safety Data Sheet (PDF) |
|---|---|---|---|
| 174819-0015 | Concentration: 30, Gallons: 15 | ||
| 244338-0015 | Concentration: 35, Gallons: 15 | ||
| 174821-0015 | Concentration: 40, Gallons: 15 | ||
| 175578-0015 | Concentration: 50, Gallons: 15 | ||
| 155738-0015 | Concentration: 100, Gallons: 15 | ||
| 155738-0055 | Concentration: 100, Gallons: 55 | ||
| 155738-0005 | Concentration: 100, Gallons: 5 | ||
| 244338-0330 | Concentration: 35, Gallons: 330 | ||
| 244338-0055 | Concentration: 35, Gallons: 55 | ||
| 244338-0005 | Concentration: 35, Gallons: 5 | ||
| 244337-0330 | Concentration: 45, Gallons: 330 | ||
| 244337-0055 | Concentration: 45, Gallons: 55 | ||
| 244337-0005 | Concentration: 45, Gallons: 5 | ||
| 175578-0330 | Concentration: 50, Gallons: 330 | ||
| 175578-0055 | Concentration: 50, Gallons: 55 | ||
| 175578-0005 | Concentration: 50, Gallons: 5 | ||
| 174821-0330 | Concentration: 40, Gallons: 330 | ||
| 174821-0055 | Concentration: 40, Gallons: 55 | ||
| 174819-0330 | Concentration: 30, Gallons: 330 | ||
| 174821-0005 | Concentration: 40, Gallons: 5 | ||
| 174819-0055 | Concentration: 30, Gallons: 55 | ||
| 174819-0005 | Concentration: 30, Gallons: 5 | ||
| 155738-0330 | Concentration: 100, Gallons: 330 |
Alphi-11 Antifreeze Protector can be introduced via the feed and expansion tank, or injected directly into the system via a suitable point (e.g. dosing pot). Introduce into the system after draining off a quantity of water at least equal to the amount of Alphi-11 to be added. Engage the circulating pump and have the system online for a few hours in order to achieve an even distribution.
| Code | Concentration & Gallons | Single Unit Barcode | Single Unit Dimensions(Height x Width x Depth) | Outer Carton Barcode (ITF) | Outer Carton Dimensions(Height x Width x Depth) |
|---|---|---|---|---|---|
| 174819-0015 | Concentration: 30, Gallons: 15 | 5014551003743 | 26.29 x 14.41 x 14.41 " | x x " | |
| 244338-0015 | Concentration: 35, Gallons: 15 | 5014551003750 | 26.29 x 14.41 x 14.41 " | x x " | |
| 174821-0015 | Concentration: 40, Gallons: 15 | 5014551003767 | 26.29 x 14.41 x 14.41 " | x x " | |
| 175578-0015 | Concentration: 50, Gallons: 15 | 5014551003774 | 26.29 x 14.41 x 14.41 " | x x " | |
| 155738-0015 | Concentration: 100, Gallons: 15 | 5014551003736 | 26.29 x 14.41 x 14.41 " | x x " | |
| 155738-0055 | Concentration: 100, Gallons: 55 | 5014551000599 | 35.00 x 22.01 x 22.01 " | 35.00 x 87.99 x 87.99 " | |
| 155738-0005 | Concentration: 100, Gallons: 5 | 5014551000568 | 15.00 x 11.02 x 10.51 " | 30.00 x 175.98 x 115.98 " | |
| 244338-0330 | Concentration: 35, Gallons: 330 | 5014551003804 | 52.99 x 47.99 x 40.00 " | 52.99 x 47.99 x 40.00 " | |
| 244338-0055 | Concentration: 35, Gallons: 55 | 5014551002289 | 35.00 x 22.01 x 22.01 " | 35.00 x 87.99 x 87.99 " | |
| 244338-0005 | Concentration: 35, Gallons: 5 | 5014551002296 | 15.00 x 11.02 x 10.51 " | 30.00 x 175.98 x 115.98 " |
